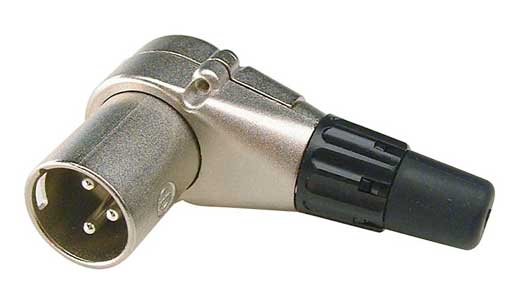

Neutrik XLR M 3C COUDE NEUTRIK

Connecteur XLR 3 pôles mâle.

Boîtier en nickel et contacts silver.
Neutrik XLR M 3C COUDE NEUTRIK - Image n°2
Neutrik XLR M 3C COUDE NEUTRIK - Image n°3
Neutrik XLR M 3C COUDE NEUTRIK - Image n°4
16,00€
écotaxe 0,08€
Prix EDS16,00€
Prix public
Tarif de livraison 8,00€
Garantie :
-- an(s)
Stock principalLivré sous 24 à 48H
Notre indication de stock est remise à jour toutes les 24H. Nous vous garantissons un traitement rapide et un suivi exceptionnel. La livraison sous 5/10 jours signifie que le produit est en stock chez notre fournisseur.
Ajouter au panier
Neutrik XLR M 3C COUDE NEUTRIK - Image principale
Neutrik XLR M 3C COUDE NEUTRIK - Image n°2
Neutrik XLR M 3C COUDE NEUTRIK - Image n°3
Neutrik XLR M 3C COUDE NEUTRIK - Image n°4

Caractéristiques XLR M 3C COUDE NEUTRIK

No. of Contacts: 3
Gender: Plug
Connector Colour: Natural
Contact Termination: Solder
Contact Plating: Silver
Connector Mounting: Cable
Connector Body Material: Metal
SVHC: No SVHC (19-Dec-2012)
Body Diameter: 20.4mm
Cable Diameter Max: 8mm
Cable Diameter Min: 3.5mm
Colour: Nickel
Contact Material: Brass
Contact Plating: Silver
Contact Resistance: 3mohm
Current Rating: 16A
De-mating Force: 20N
External Depth: 69.3mm
Flammability Rating: UL94HB
Insertion Force: 20N
Insulation Resistance: 2Gohm
Material: Nickel
Mating Force: 20N
Mechanical Life: 1000 cycles
Mounting Type: Cable
No. of Mating Cycles: 1000
Operating Temperature Max: 80°C
Operating Temperature Min: -30°C
Termination Method: Solder
Voltage Rating V AC: 50V
Wire Area Size Max: 2.5mm²
Wire Size AWG Max: 14AWG
XLR Capacitance: 4pF
